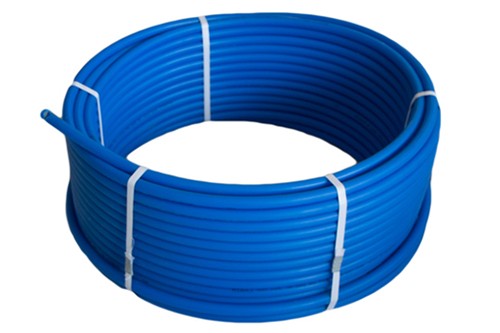

Compressed Air Distribution Pipe

Product Details:

Application
Brand NEXGEN
Capacity 500000 mt per month
Color Blue
Certified As per ASTM 1882F Certified
Length 100 mt
Material Polyethylene Aluminium Polyethylene
Nominal Size 1216,1620,2025,2532,3240,4050
Shape Round
Single Piece Length 100 mt

Specifications:
  • * Wide range working temp, High-pressure resistance
  • * 30% more floe then metal pipe
  • * 50-year working life
  • * Non-corrosive, scale free
  • * Hygienic, no oxgen permeability, no growth of microorganism
  • * Non-inflammable, non-static
  • * Easy bending but never spring back
  • * Light in Weight, easy to carry and strore
  • * Few pipe fitting applied learning to few leak
  • * Easy to install, wide range of usage

SPECIFICATION STANDARD WORKING PRESSURE (MPA) MINIMUM BURST PRESSURE (MPA) MIN. ALUMINIUM THICKNESS MM WORKING TEMPERATURE (C) LENGTH (M/ROLL)
NX/C-1216 1.25 6.0 0.20 -40-80 100
NX/C-1620 1.25 5.0 0.25 -40-80 100
NX/C-2025 1.25 4.0 0.25 -40-80 100
NX/C-2532 1.25 4.0 0.25 -40-80 50
NX/C-3240 1.25 3.5 0.30 -40-80 50
