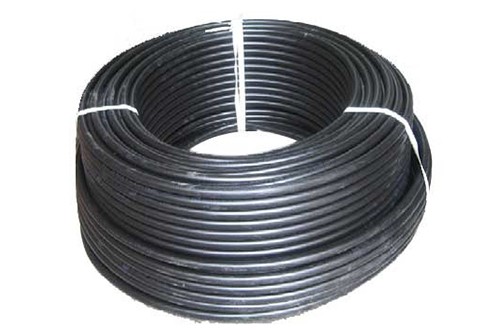

Cold Water Distribution Pipe

Cold Water Distribution Pipe



Product Details:

Application Drinking Water, Utilities Water, Plumbing
Brand NEXGEN
Capacity 500000 mt per month
Color Black
Certified ISI Certified
Length 100 mt
Material Polyethylene Aluminium Polyethylene
Nominal Size 1216,1620,2025,2532,3240,4050
Shape Round
Single Piece Length 100 mt

Specifications:

  • Wide range working temp, High-pressure resistance.
  • 30% more floe then metal pipe.
  • 50-year working life.
  • Non-corrosive, scale free.
  • Hygienic, no oxygen permeability, no growth of microorganism.
  • Non-inflammable, non-static.
  • Easy bending but never spring back.
  • Light in Weight, easy to carry and store.
  • Few pipe fitting applied learning to few leak.
  •  Easy to install, wide range of usage.
Composite Pipe Company in India
SPECIFICATION STANDARD WORKING PRESSURE (MPA) MINIMUM BURST PRESSURE (MPA) MIN. ALUMINIUM THICKNESS MM WORKING TEMPERATURE (C) LENGTH (M/ROLL)
NX/C-1216 1.25 6.0 0.20 -40-80 100
NX/C-1620 1.25 5.0 0.25 -40-80 100
NX/C-2025 1.25 4.0 0.25 -40-80 100
NX/C-2532 1.25 4.0 0.25 -40-80 50
NX/C-3240 1.25 3.5 0.30 -40-80 50
NX/C-4050 1.25 3.5 0.30 -40-80 50
