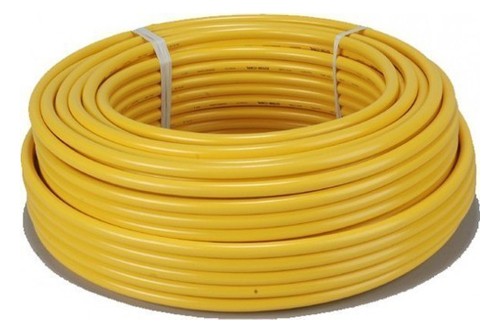

Oxygen and Gas Distribution
Product Details:
| Application | Gas Oxygen and Gas Distribution |
|---|---|
| Brand | NEXGEN |
| Capacity | 500000 mt per month |
| Color | Yellow/Black |
| Certified | As per ASTM 1882F Certified |
| Length | 100 mt,200 mt |
| Material | Polyethylene Aluminium Polyethylene |
| Nominal Size | 1014,1216,1620,2025 |
| Shape | Round |
| Single Piece Length | 100 mt |
Specifications:
-
- * Wide range working temp, High-pressure resistance
- * 30% more floe then metal pipe
- * 50-year working life
- * Non-corrosive, scale free
- * Hygienic, no oxgen permeability, no growth of microorganism
- * Non-inflammable, non-static
- * Easy bending but never spring back
- * Light in Weight, easy to carry and strore
- * Few pipe fitting applied learning to few leak
- * Easy to install, wide range of usage
| SPECIFICATION | STANDARD WORKING PRESSURE (MPA) | MINIMUM BURST PRESSURE (MPA) | MIN. ALUMINIUM THICKNESS MM | WORKING TEMPERATURE (C) | LENGTH (M/ROLL) |
|---|---|---|---|---|---|
| NX/C-1014 | 0.4 | 6.0 | 0.20 | – 20 ~ 50 | 200 |
| NX/C-1216 | 0.4 | 6.0 | 0.20 | – 20 ~ 50 | 200 |
| NX/C-1620 | 0.4 | 5.0 | 0.25 | – 20 ~ 50 | 100 |
| NX/C-2025 | 0.4 | 4.0 | 0.25 | – 20 ~ 50 | 100 |
